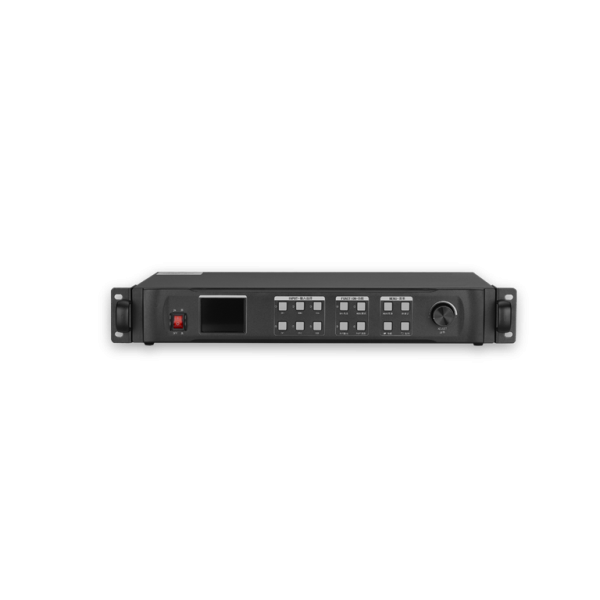

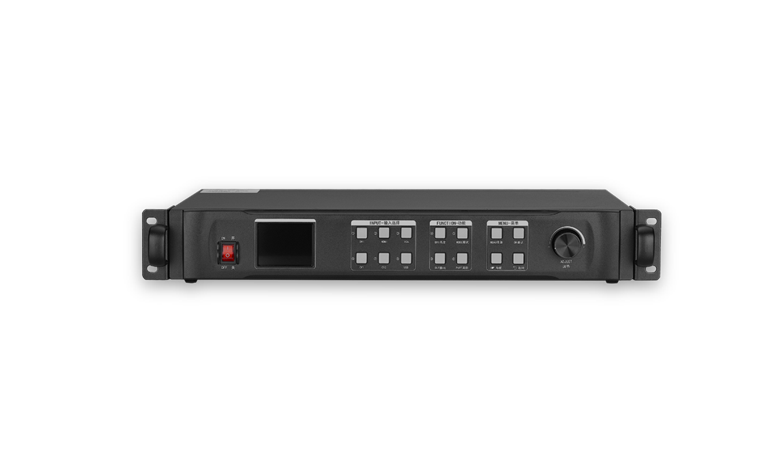

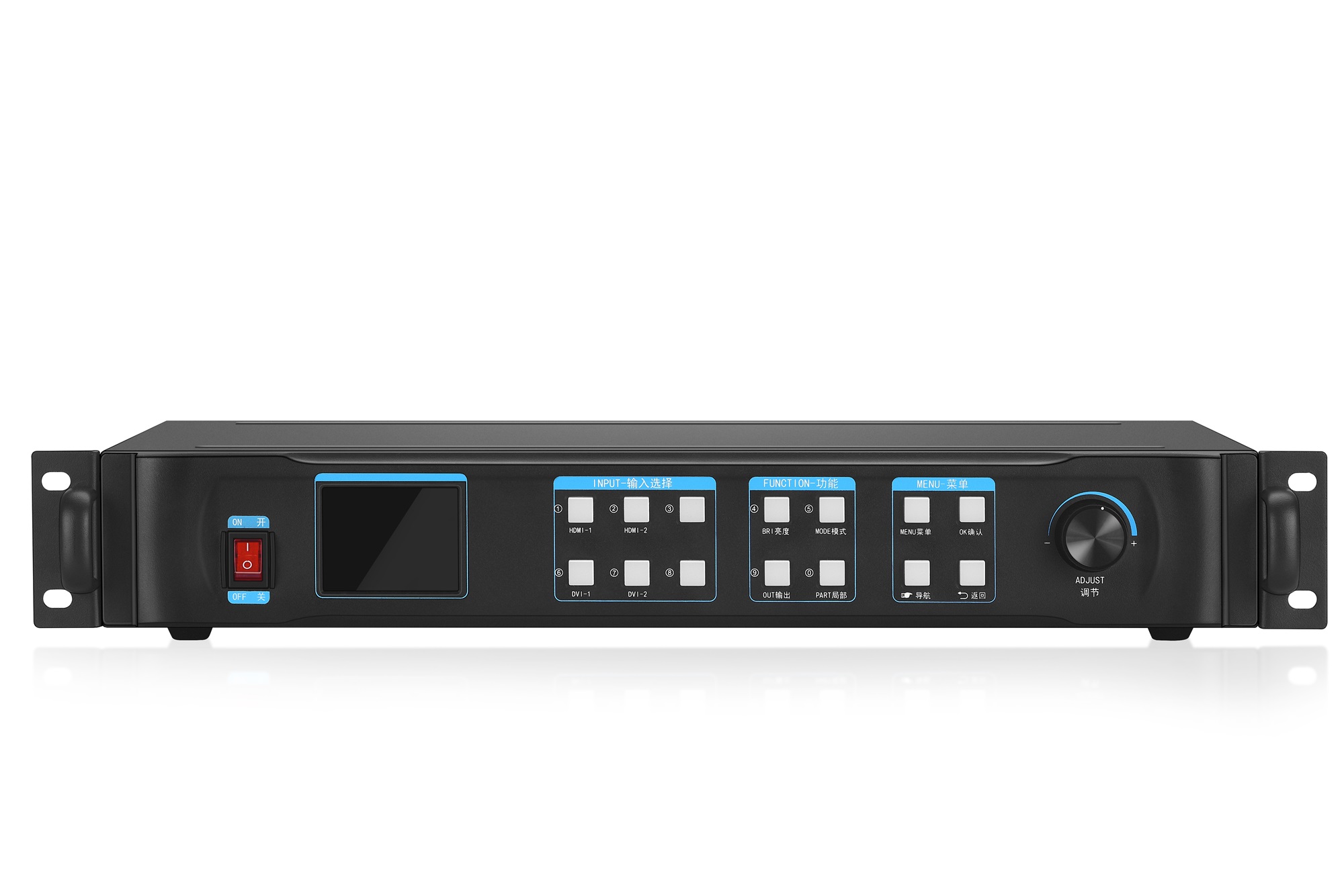

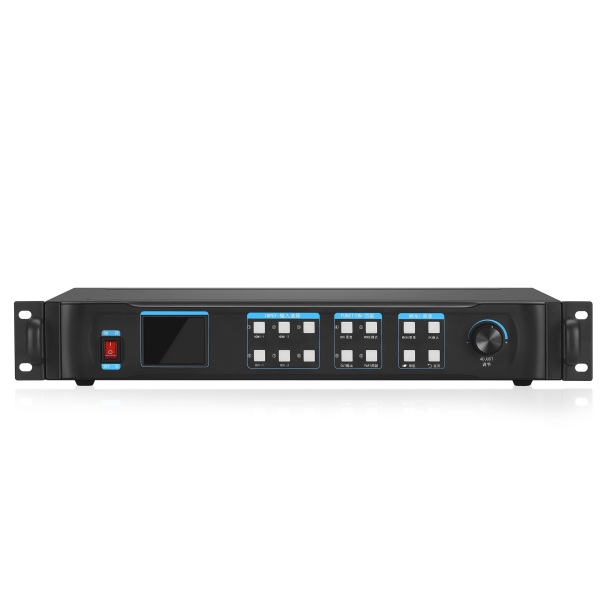

Bộ xử lý hình ảnh Kystar KLS4C

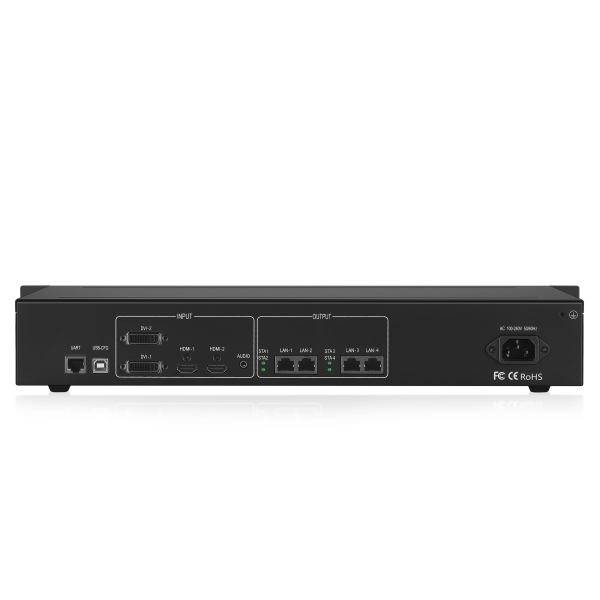

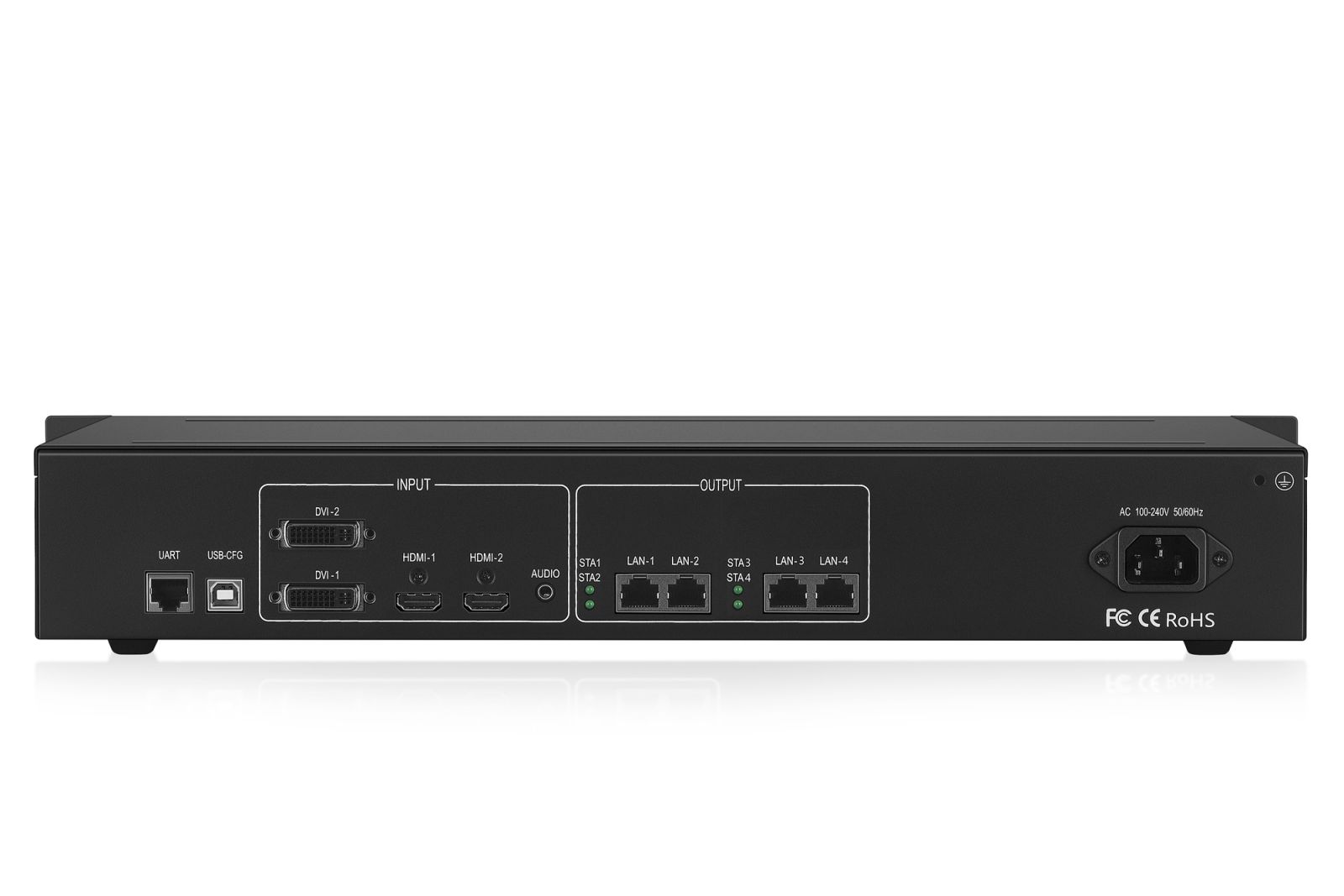

Tín hiệu vào: DVI* 1, HDMI* 2, Audio* 1
Tín hiệu ra: Cổng mạng Gigabit *4, audio *1
Cổng điều khiển: USB-CFG*1, COM *1
Độ phân giải tối đa: 2,6 triệu pixels
Ngang tối đa: 4096 pixels
Cao tối đa: 2048 pixels
Hỗ trợ kết nối máy tính, truyền hình trực tuyến ....

Description

Kstar LS4  Two in One Video controller

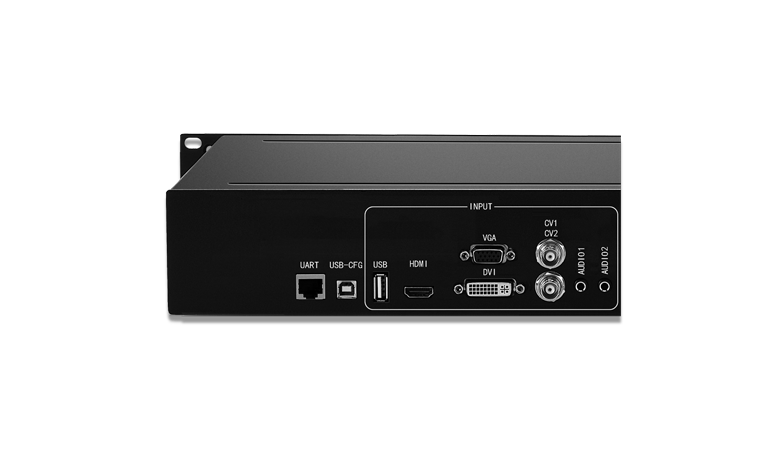

Six-channel Video Signal Input

01

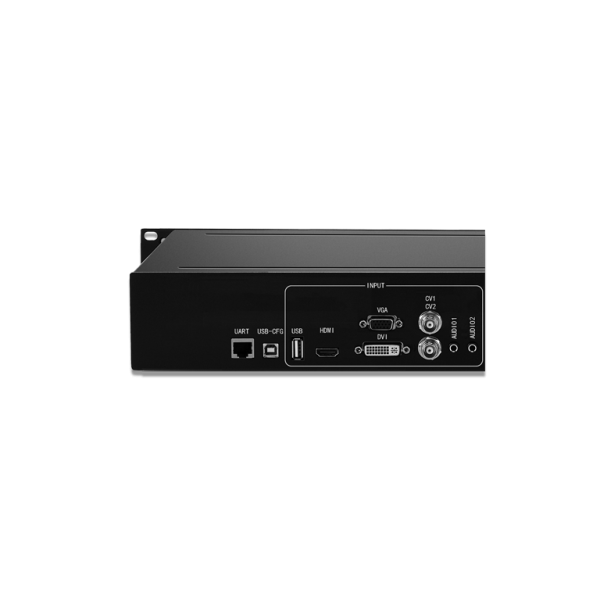

LS4 supports six-channel HD video signal input, including DVI×1, HDMI×1, VGA×1, CVBS×2, USB×1.

At the same time ,LS4 support two audio inputs and one audio output .It supports video and audio synchronous switching.

(In addition, USB and HDMI inputs support audio signal)

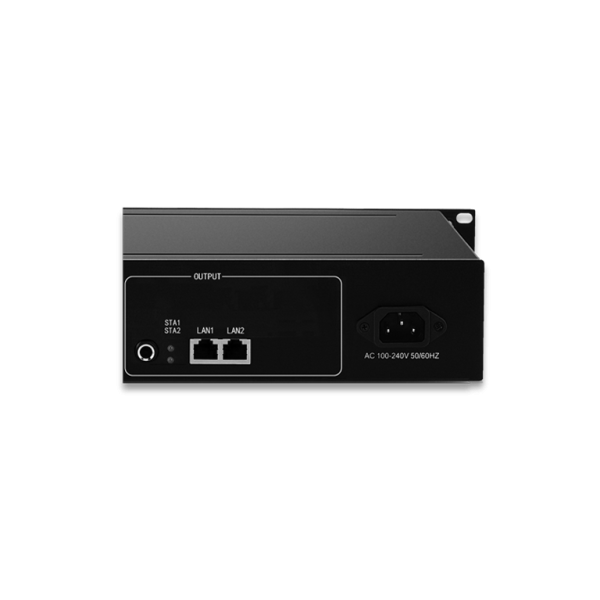

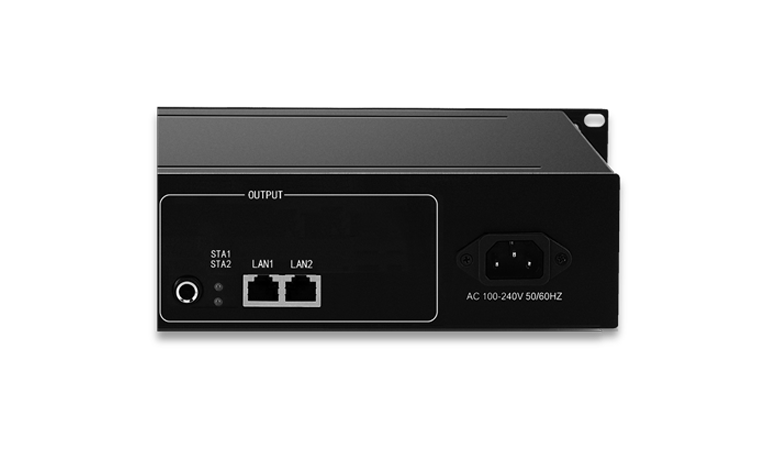

Four network port with 2.36 million pixels

02

LS4 is equipped with four Ethernet port outputs, the maximum resolution is up to 2.36 million pixels. The maximum horizontal resolution is 3840 pixels , and maximum vertical resolution is 1080 pixels .

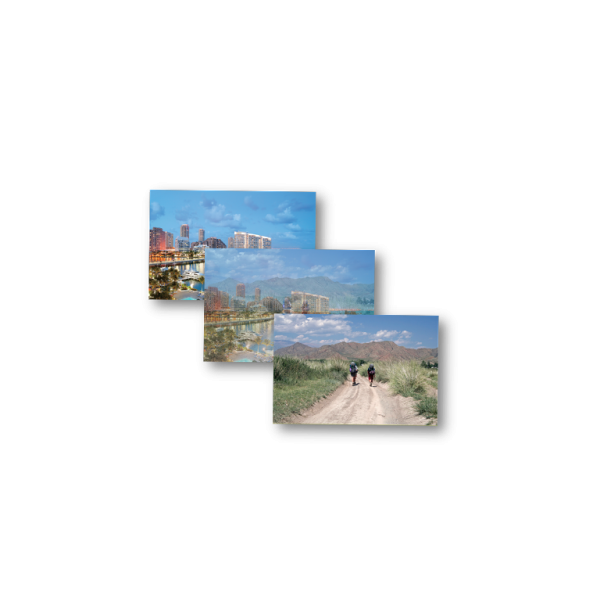

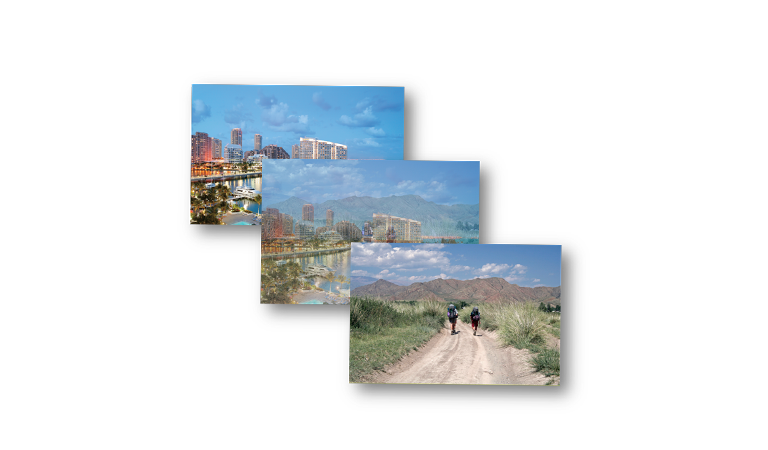

Seamless Switching With Fade-in and Fade-out

03

LS4 supports fade-in and fade-out signal switching, without blank screen during the process.

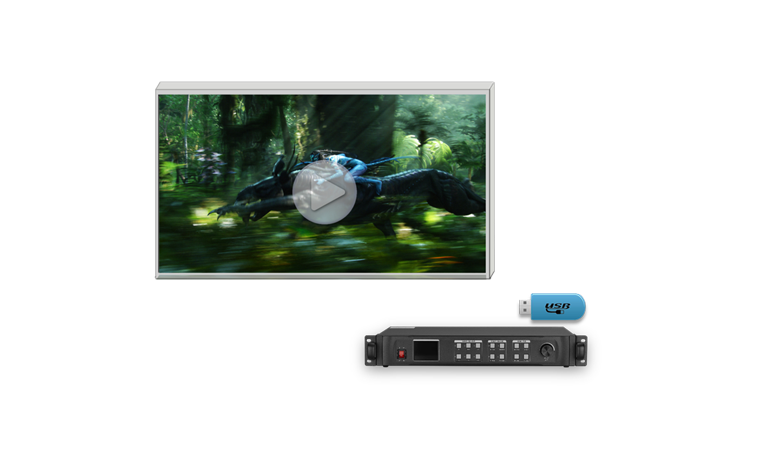

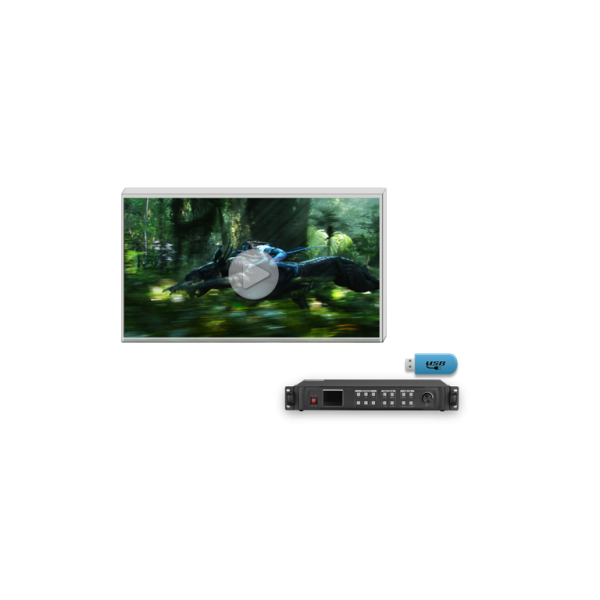

USB Disk Play Support

04

LS4 supports fade-in and fade-out signal switching, without blank screen during the process.

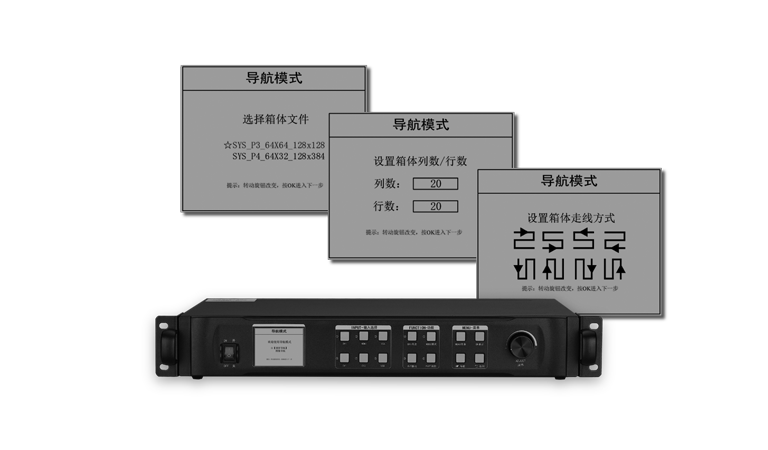

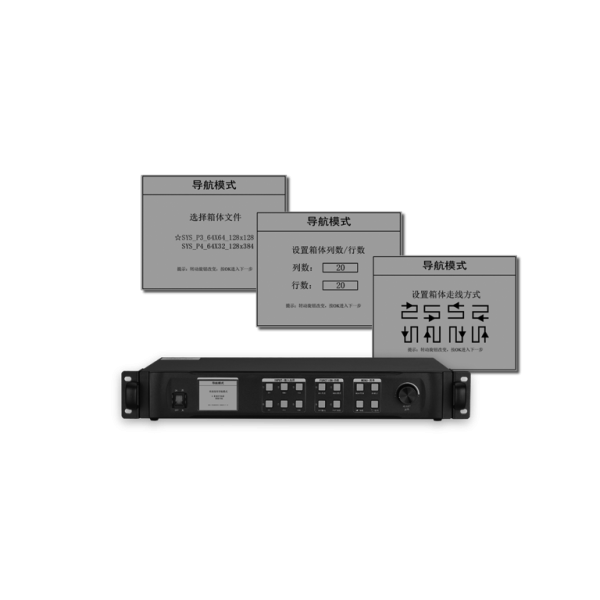

Configure Screen Without Computer

05

LS4 can store the project file information in advance. Users can complete the cabinet mapping of the LED screen according to the guidance through the navigation menu without a computer.

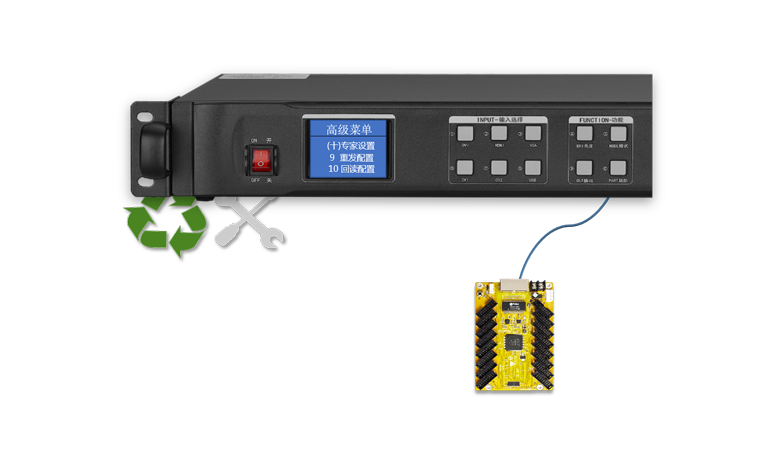

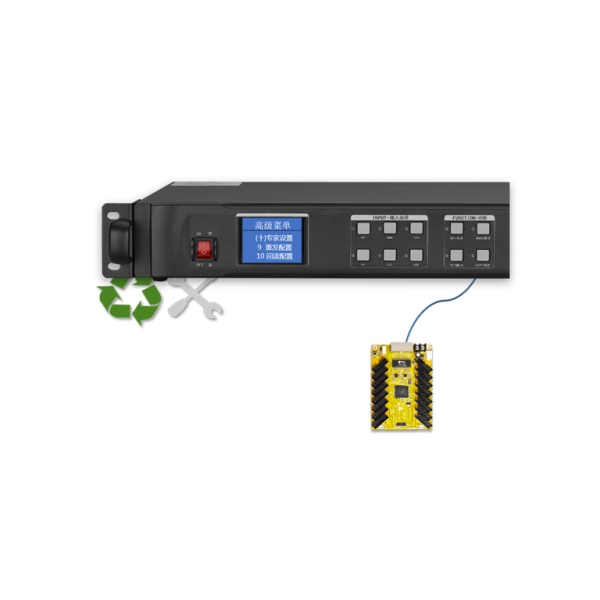

Date-read-back and Easy Recovery

06

With the data-read-back function, users can quickly get the correct configuration parameters from the receiving card when replacing the controller.

With the easy recovery function, when the user changes the receiving card, LS4 can resend the configuration which stored in the device , so as to complete the system recovery without reconfiguring the parameters.
