Bộ xử lý hình ảnh Kystar KP2

Đầu vào: DVI *1, HDMI *1, AUDIO *1, USB * 1, Cổng mạng Gigabit (RJ45)*1
Đầu ra: Cổng mạng Gigabit (RJ45)*2
Cổng điều khiển: USB-CFG *1, COM *1
Tổng tối đa điểm ảnh quản lý: 1.31 triệu pixels
Tối đa điểm ảnh chiều rộng quản lý: 3840 pixels
Tối đa điểm ảnh chiều dài quản lý: 2000 pixels



Description

Single network port 650,000 pixel load

01

KP1&KP2 single network port can load up to 650,000 pixels,

The output of the KP2 machine supports a max of 1.3 million pixels.

The max width is 3840 pixels, the maximum is 2000 pixels,

At the same time, it supports downloading updates through software mapping.

Can load wider and taller screens.

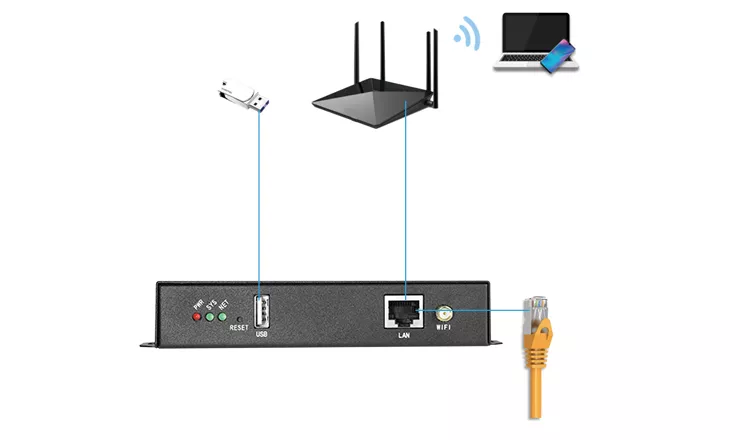

Various connection methods for stable communication

02

Local network connection: it can access the network through the router for mobile phone and computer connection, and supports wireless configuration screen;

Network cable direct connection: it can directly establish communication with the computer through the network cable;

WiFi hotspot: the mobile device connects the WiFi hotspot sent by the box for wireless communication;

U-disk transmission: support U-disk to release programs, U-disk to adjust the screen, set large screen brightness, etc

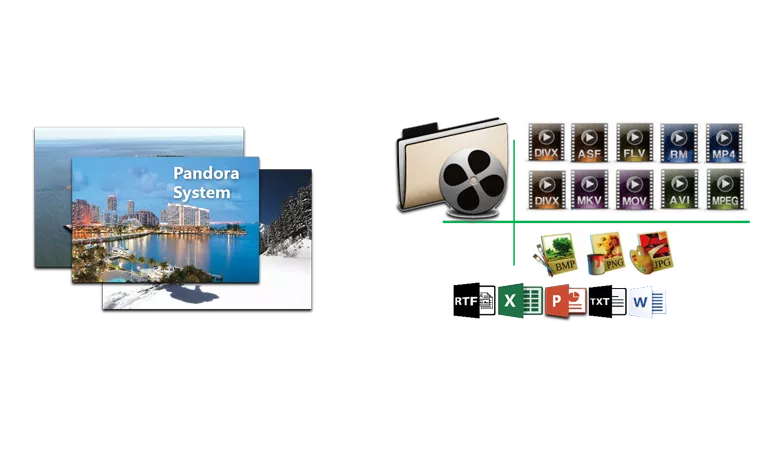

Multi-format and multi-window mixing

03

It has excellent multimedia playback capability, supports multiple formats of video, pictures, audio, text and various colorful text forms, and the standard 60Hz output is more fluent.

It has a powerful window opening ability and supports playing 3 1080p or 5 720p video windows and more than 10 picture windows at the same time.

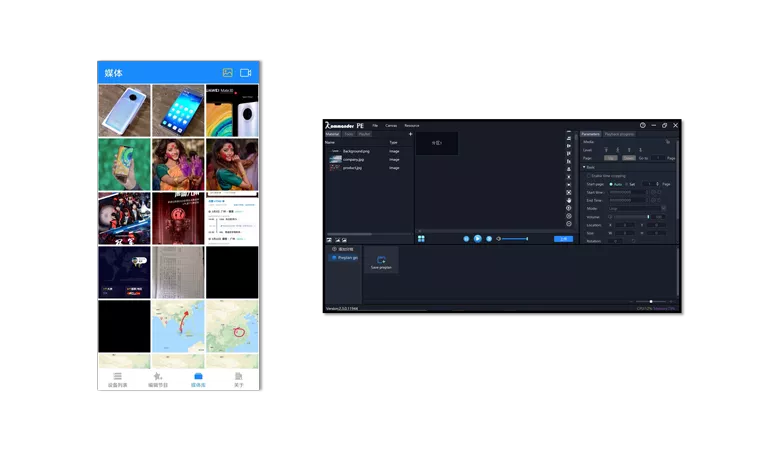

Professional program editing and upload

04

Professional program editing and upload can be carried out through PC kystar PE multimedia editing and management software. Kystar PE has professional video optimization and program scheduling capabilities and can meet complex playback requirements;

At the same time, you can also edit real-time programs through the mobile app “Pandora’s Box”, with a wireless connection, which is convenient and fast.

Kares Cloud System

05

Support cloud platform-based cluster playback control system. Pandora display terminals distributed in different locations can be connected to the Kares broadcast control system through a local area network or the Internet to realize cluster display control of one person managing thousands of screens.
